2.0mm FC Ftth Connector , Dual Core Multimode Fiber Connectors

Product Categories
XDK Communication Equipment Huizhou Co., Ltd
Contact Now

2.0mm FC Ftth Connector , Dual Core Multimode Fiber Connectors

  • 1
  • 2
  • 3

Brand Name : XDK

Model Number : FC Connector

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Connector Type : FC

Fiber Type : SM, MM

Color : according to stranded color (can be required)

Housing Material : Plastic or Metal

Channel Number : Single core, dual-core

Boot(option) : 3.0mm,2.0mm or 0.9mm

Contact Now

Fiber Optic Connector/FC Connector/ Single Mode/ Multi Mode/ APC/UPC/Customized/ Competitive Price

Introduction

Fiber cable connector, also named fiber optic connector or optical fiber connector, is a hardware installed on fiber cable ends. It provides cable attachment to a transmitter, receiver or other cable. There are various fiber cable connectors, for which different connectors have different characteristic and functions.

The most popular used ones are ST. SC, FC and LC style connectors, which vary differently from characteristics, applications and performances. All the connectors have three major components: the ferrule, the connector body and the coupling mechanism. Among those, the ferrule is used for protecting and aligning the stripped fiber end. The connector body holds the ferrule and attaches to the jacket and strengthens fiber cable. The coupling mechanism is a part of the connector body that keeps the connector in place when connected to other devices.

Pictures

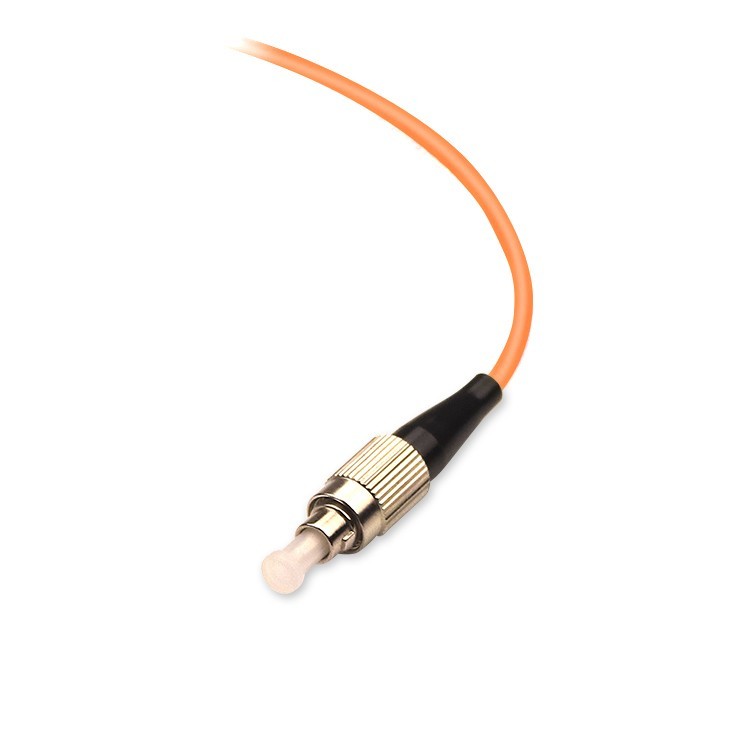

2.0mm FC Ftth Connector , Dual Core Multimode Fiber Connectors2.0mm FC Ftth Connector , Dual Core Multimode Fiber Connectors

Description

Insertion Loss: Typical≤0.20dB,max.≤0.30dB Application: FTTH FTTB FTTX Network, CATV, To Make Patch Cord, Telecommunication
Connector Type: ST/SC/FC/LC/MTRJ/MU/E2000 Fiber Type: SM/MM
Work Wavelength: 1310nm/1550nm/850nm/1300nm Lead Time: Within One Week
Packing: Negotiable Repeatability: ≤0.20dB
Exchangeability: ≤0.20dB Durability: 1000 Mating, Max≤0.20dB
Channel Number: Single Core, Dual-core Housing Material: Plastic Or Metal
Boot(Option): 3.0mm, 2.0mm Or 0.9mm Ferrule: Ceramic (ZrO2) Or Customized
Operating Temperature: -40℃ To +80℃ Storage Temperature: -40℃ To +80℃

Charactristics

1) Low insertion loss

2) Corroion resistant body

3) Ultra low back reflection

4) For 3.0mm,2.0mm jacket or 900um buffer

5) One piece with pre-domed ceramic ferrule is designed for easy assembly

6) Meets Telecordia-GR-326-CORE specifications

2.0mm FC Ftth Connector , Dual Core Multimode Fiber Connectors
