Fiber Optic Connector/MU Connector/ Single Mode/ Multi Mode/ APC/UPC/Customized/ Competitive Price
Introduction
Fiber cable connector, also named fiber optic connector or optical fiber connector, is a hardware installed on fiber cable ends. It provides cable attachment to a transmitter, receiver or other cable. There are various fiber cable connectors, for which different connectors have different characteristic and functions.
The most popular used ones are ST. SC, FC and LC style connectors, which vary differently from characteristics, applications and performances. All the connectors have three major components: the ferrule, the connector body and the coupling mechanism. Among those, the ferrule is used for protecting and aligning the stripped fiber end. The connector body holds the ferrule and attaches to the jacket and strengthens fiber cable. The coupling mechanism is a part of the connector body that keeps the connector in place when connected to other devices.
Parameters
| Item | Parameter |
| Connector Type | ST,SC,FC,LC,MU |
| Fiber Type | SM | MM |
| Color | Blue, Green, Metallic | Beige,Metallic, Aqua |
| Testing Wavelength | 1310nm, 1550nm | 850nm,1300nm |
| Insertion Loss | 0~30dB |
| Return Loss | PC≥50dB, APC≥60dB | PC≥25dB |
| Attenuation Tolerance | 0~5dB(±0.5dB), 5~30dB(±10%) |
| Power Handling | ≤200mW |
| Housing Material | Plastic or metal |
| Alignment Sleeve | Ceramic(ZrO2) or customized |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |
Charactristics
1) Low insertion loss
2) Corroion resistant body
3) Ultra low back reflection
4) For 3.0mm,2.0mm jacket or 900um buffer
5) One piece with pre-domed ceramic ferrule is designed for easy assembly
6) Meets Telecordia-GR-326-CORE specifications
Product Tags:
|
|

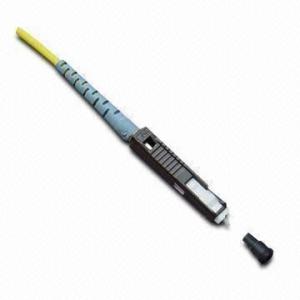

ISO9001 MU Fiber Optic Connector Plastic Or Metal Housing Images
|
