Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode/ OM2 /Simplex /3.0mm/ LSZH/ PVC/Yellow

Brand Name : XDK

Model Number : Fiber Optic Patch Cord FC/UPC-FC/UPC, Multimode, OM2

Certification : ISO9001, IEC-61754, TIA/EIA-604, GR326, RoHS

Place of Origin : China/Vietnam

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Packaging Details : regular packaging

Supply Ability : 5 million termination/month

Fiber Mode : OM2 50/125um

Connector Type : FC/UPC-FC/UPC

Fiber Count : Simplex

Jacket Material : LSZH, PVC( can be required)

Jacket Color : Yellow

Length : 1m,5m(customized)

Contact Now

Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode/ OM2 /Simplex /3.0mm/ LSZH/ PVC/Yellow

Introduction

Fiber optic patch cords suited for equipment jumper cable, cross connects and work area connections. All patch 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards. FC, SC, ST, LC Patch Cords are available in both multimode and single mode cable-types, in duplex and simplex versions.

Features

1) Avalible in simplex, duplex connector options

2) Quick-tum service for fast delivery

3) TIA compliant color-coded connectors and boots

4) Cable jaket and boots color-coded for easy ID of fiber

5) Fiber options: OS2, OM1,OM3, and OM4

6) 100% tested for insertion loss and return loss

7) Other jacket colors available as custom with MOQ and lead time applicable

Specification

Connector Type	FC/UPC to FC/UPC	Fiber Count	Simplex
Fiber Mode	OM2 50/125um	OFL Bandwidth (850/1300nm)	500/500 MHz*km
Insertion Loss	≤0.3dB	Return Loss	≥35dB
Attenuation at 850/1300nm (Typical)	3.5/1.5 dB/km	Ferrule Materials	Ceramic
Cable Diameter	3.0mm	Strength Member	Aramid yarn
Optical Source	LED Light	Minimum Bend Radius (Short term/Long term)	20D/10D
Cable Jacket	LSZH or PVC	Cable Colour	Yellow
Operating Temperature	-20~70°C	Storage Temperature	-40~85°C

Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH

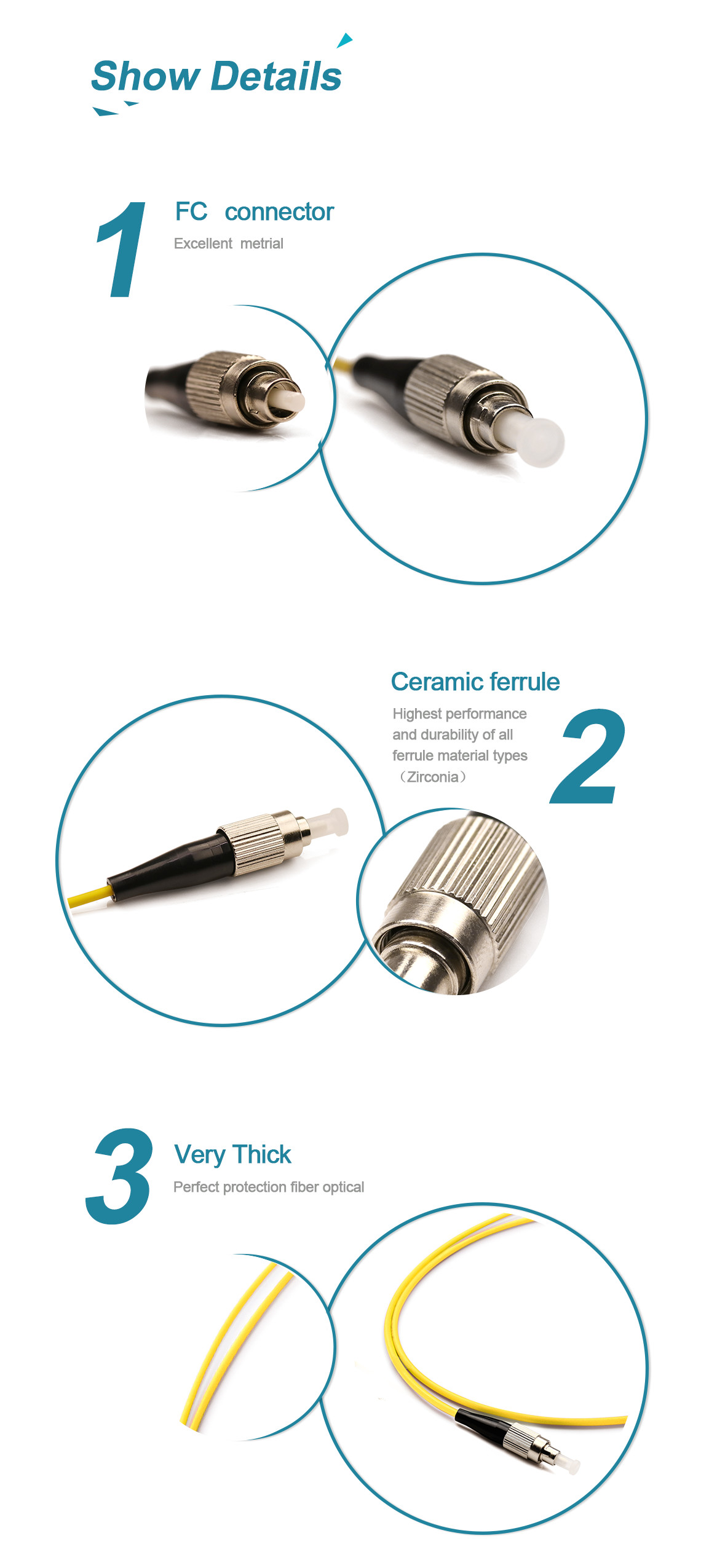

Fiber Optic Patch Cord/ FC/UPC-FC/UPC/ Multimode/ OM2 /Simplex /3.0mm/ LSZH/ PVC/Yellow Images
