8-24 Fibers OM4 HD BIF Mtp Breakout Cable Multimode LSZH Bunch

Brand Name : XDK

Model Number : Customized MTP® 8-24 Fibers OM4 Multimode Conversion Harness Cable

Certification : CPR, DCR,ECR,FCR,ROHS,ISO9001,UL

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T D/P D/A

Supply Ability : 5million termination per month

Delivery Time : 7 working days

Packaging Details : OEM PE bag, carton box, wooden roll

Ferrule : 0.35dB(Low Loss Elite)

Color : Aqua, Pink, Violet, Customized

Outerjacket : LSZH(CPR),PVC,UL PVC,OFNR ,OFNP

Diameter : 3.0mm,4.6mm

Connector Type : US Conec MTP®-MTP® Female (Without Pin)

Fiber Mode : OM3 OM4 50/125μm

Installation Tensile Load : 70N

Long-Term Tensile Load : 50N

Contact Now

Customized 8-24 Fibers MTP®-12 OM4 Multimode HD BIF Breakout Cable, Elite, LSZH Bunch

MTP®-HD to LC-HD (High Density ) fiber patch cables allow high-density connections between network equipment in telecommunication rooms. The Push/Pull tab connector can be removed using a simple pull tab, eliminateing the need for finger access to the connectors release mechanism in dense applications. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

Performance:

END A END B
Connector Type MTP/MPO MTP/MPO LC LC Uniboot SC
Polarity Polarity A, Polarity B, Polarity C
IL(MTP/MPO) Standard ≤0.5 dB Ave ≤0.3dB
IL(MTP/MPO) Elite: ≤0.35dB Ave: ≤0.2dB
IL(LC/SC) Standard ≤0.25dB Low Loss : ≤0.15dB
RL SM:≥60dB MM: ≥20dB
Tester Brand EXFO & JGR
Repeatability ≤0.2dB
Interchangeability ≤0.2dB
Mating 1000 Times
Opterating Temperature -20℃ ~ +70℃
3D Interferometer Fiber Height: 1000nm~3500nm
Radius Long: 500mm min Radius Short: 50mm min Ferrule Height: 7.95mm min
MM Core Dip: <100nm

Test:

8-24 Fibers OM4 HD BIF Mtp Breakout Cable Multimode LSZH Bunch

Features:

- Ulitize MPO/MTP connectors

- Inner: Ceramic Ferrule

- Available in Elite insertion loss and standarad insertion loss.

- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.

- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.

- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.

- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard

- Interface polished type has PC, UPC and APC

- Support use in attaching directly to 40/100G transceivers

- 100% factory tested, with test results included for each assembly

· Rapid configuration and network, reduce installation time

· Support 40G and 100G network applications

· Flammability: LSZH, OFNR, OFNP available

· Support up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

8-24 Fibers OM4 HD BIF Mtp Breakout Cable Multimode LSZH Bunch

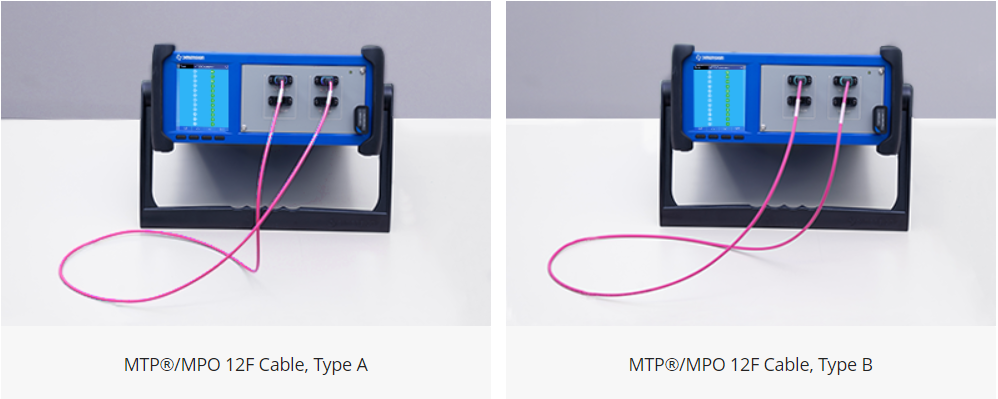

Polarity Testing:

8-24 Fibers OM4 HD BIF Mtp Breakout Cable Multimode LSZH Bunch

Production line:

8-24 Fibers OM4 HD BIF Mtp Breakout Cable Multimode LSZH Bunch
