ZrO2 FC Male To Female SM Fiber Optic Attenuator for DWDM

XDK Communication Equipment Huizhou Co., Ltd

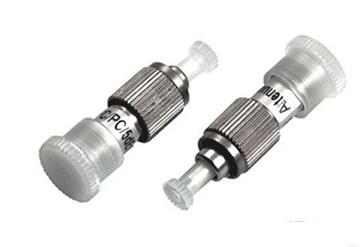

ZrO2 FC Male To Female SM Fiber Optic Attenuator for DWDM

  • 1
  • 2
  • 3

Brand Name : XDK

Model Number : FC Attenuator

Certification : ROSH,REACH

Place of Origin : China/Vietnam

MOQ : 50

Payment Terms : T/T

Supply Ability : 10000 per month

Delivery Time : 3-7 days

Packaging Details : bag pack

Connector Type : FC

Fiber Type : SM and MM

Housing Material : Plastic/Metal

Alignment Sleeve : Ceramic (can be customized)

Contact Now

ZrO2 FC Male To Female Fiber Optic Attenuator Single Mode For CATV, DWDM

Description
The male-female attenuator is connected to a fiber optic connector at one end with a fiber optic adapter at the other end. Its attenuation is fixed,unadjustable.This kind of fixed attenuator is mainly used to reduce optical power to target value in optical links.

Features

  1. Excellent Changeability and Directivity
  2. 100% optic test(Insertion Loss)
  3. Accurate attenuation
  4. Max operation power (0.5W)
  5. Low polarization related loss
  6. Individual package

Specification

Item Parameter
Connector Type ST,SC,FC,LC,MU
Fiber Type SM MM
Color Blue, Green, Metallic Beige, Metallic, Aqua
Testing Wavelength 1310nm, 1550nm 850nm, 1300nm
Insertion Loss 0~30dB
Return Loss PC≥ 50dB, APC≥ 60dB PC≥ 25dB
Attenuation Tolerance

0~5dB(±0.5dB)

5~30dB(±10% )

Power Handling ≤200mW
Housing Material Plastic or metal
Alignment Sleeve Ceramic (ZrO2) or customized
Operating Temperature -20℃ to +70℃
Storage Temperature -40℃ to +85℃

Application

  1. Fiber optical network system
  2. High speed fiber optical transmission system
  3. CATV system
  4. Long distance DWDM system
  5. OADM


ZrO2 FC Male To Female SM Fiber Optic Attenuator for DWDMZrO2 FC Male To Female SM Fiber Optic Attenuator for DWDM
